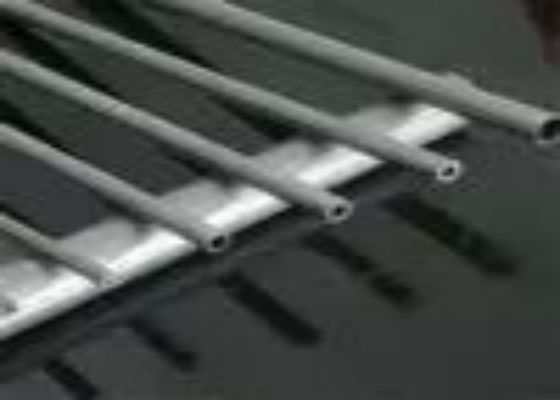

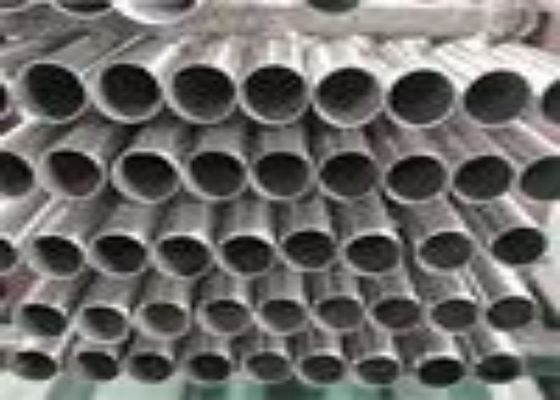

25.4mm 50.8mm 101.6mm OD Stainless Steel Welded Boiler Tube For Heat Exchanger
Product Description:The austenitic steel welded steel pipes (heat exchange pipes) produced by our company for boilers, superheaters, heat exchangers and condensers are made of high-quality stainless steel strips, after rolling, welding, rolling, grinding, heat treatment, pressure testing and polishing. It is processed by one-stop production line; according to the actual needs of users, it can produce pipes of various specifications such as pipe diameters, wall thicknesses, and lengths.
|
Material
|
Stainless Steel 304/304L/316L
|
|
Shape
|
Round / Square / Rectangle
|
|
Production Standards
|
ASTM A270, ASTM A269, ASTM A249, ASTM A778, ASTM A789, DIN 11850, EN 10357, EN 10217-7 and so on.
|
|
Size
|
Outer diameter = 16 - 2000mm ;
Thickness = 0.8 - 20 mm ; Length = 6 - 18.3 meter ; Or as customer' s request. |
|
Tolerance
|
According to the Standard , +/-10% Commonly ;
|
|
Surface Treatment
|
180#, 320#, 400# Satin / Hairline, Bright Anneal, Pickle,400#, 500#, 600# or 800# Mirror finish
|
|
Process Characteristics
|
Inner Welded Seam Removed ; Online Bright Solution Anneal ; Inner Electro Polish And Mechanical Polish ;
|
|
Application
|
Petrochemical Industry ; Chemical Fertilizer Industry ; Oil Refining Industry ; Oil And Gas Industry ; Light Industry And Food Industry ; Pulp And Paper Industry ; Energy And Environmental Industries .
|
|
Test
|
Flaring test ; Flattening test ; Bending Test ; Hydraulic Test ; Eddy Current test
|
|
Design
|
OEM / ODM / Customized
|
|
Certificate
|
ISO9001 ; ISO14001; ISO 18001; TUV ; SGS
|
